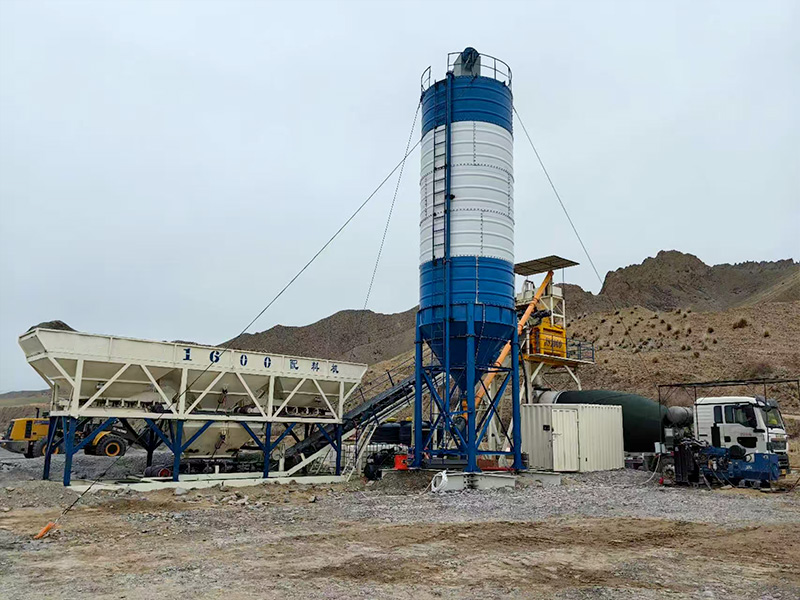

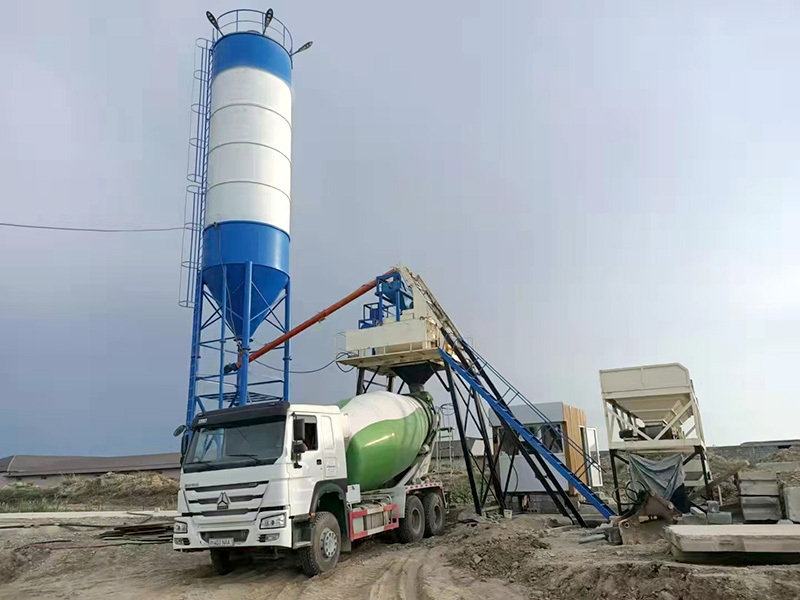

The HZS series concrete batching plant are developed and produced by our company by integrating the advantages and advanced technologies of various foreign mixing buildings and stations. The zhengyi series batching plants adopt a modular structural design, making installation and dismantling more convenient and operation reliable. With excellent mixing effect and high production efficiency, the control system uses PLC logic program automatic control combined with human-machine control for real-time tracking management, ensuring reliability and easier maintenance.
The fully enclosed structure of the mixing main body, aggregate conveying system, and dust removal system effectively reduces environmental pollution caused by dust and noise.
This equipment is suitable for construction units in highways, railways, water conservancy, ports, tunnels, bridges, airports, concrete prefabrication, commercial concrete, and other fields.
Concrete Batching Plant HZS50 | Unit | Parameter |
Maximum Theoretical Production Rate | m3/h | 50 |
Main Unit Nominal Capacity | m3 | 1.0 |
Aggregate Weigher Maximum Weighing Capacity | kg | 1600 |
Cement Batch Weigher Limit | kg | 350 |
Water Weigher Maximum Weighing Capacity | kg | 300 |
Maximum Weighing Value of Admixtures | kg | 50 |
| Cement Silo Capacity | t | 100
|
Mixing Power (JS1000) | kW | 18.5×2 |
Hoisting Power | kW | 13 |
Total Installed Power | kW | 80 |
Discharge Height | m | 4.1m |
Aggregate Weighing Accuracy | % | ±2 |
Water Metering Accuracy | % | ±1 |
| Cement Weighing Accuracy | % | ±1 |
Admixture Dosing Accuracy | % | ±1 |
Automatic Cycle Time | S | 72 |
Concrete Batching Plant HZS50-1Q1000.pdf
