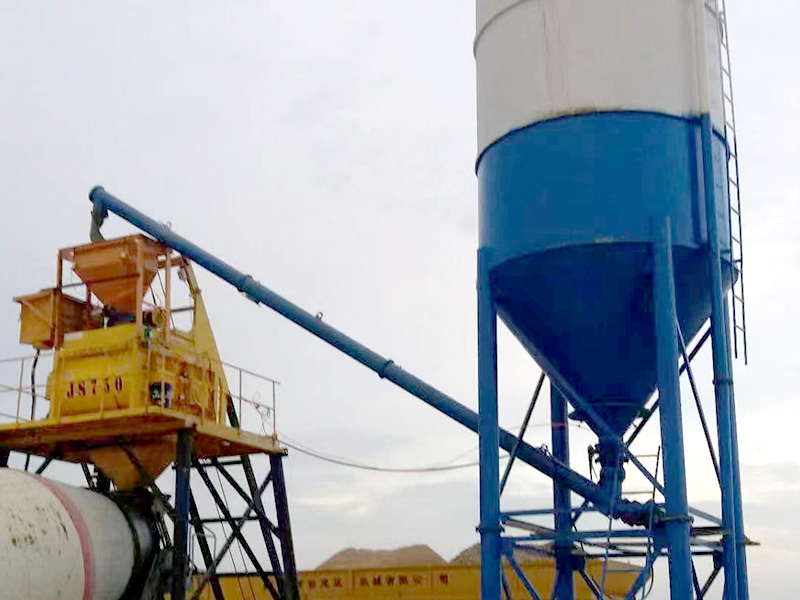

The HZS series concrete batching plants are developed and produced by our company by integrating the advantages and advanced technologies of various foreign mixing buildings and stations. The Xinyu series mixing stations adopt a modular structural design, making installation and dismantling more convenient and operation reliable. With excellent mixing effect and high production efficiency, the control system uses PLC logic program automatic control combined with human-machine control for real-time tracking management, ensuring reliability and easier maintenance.
The fully enclosed structure of the mixing main body, aggregate conveying system, and dust removal system effectively reduces environmental pollution caused by dust and noise.
This equipment is suitable for construction units in highways, railways, water conservancy, ports, tunnels, bridges, airports, concrete prefabrication, commercial concrete, and other fields.
Concrete Batching Plant HZS35 | Unit | Parameter |
Maximum Theoretical Production Rate | m3/h | 35 |
Main Unit Nominal Capacity | m3 | 0.75 |
Aggregate Weigher Maximum Weighing Capacity | kg | 1200 |
Fly Ash Weigher Maximum Weighing Capacity | kg | 600 |
Bentonite Weigher Maximum Weighing Capacity | kg | 600 |
Water Weigher Maximum Weighing Capacity | kg | 200 |
Mixing Power (JS750) | kW | 30 |
Hoisting Power | kW | 7.5 |
Total Installed Power | kW | 60 |
Discharge Height | m | 3.8m |
Aggregate Weighing Accuracy | % | ±2 |
Mater Measuring Accuracy | % | ±1 |
Admixture Dosing Accuracy | % | ±1 |
Automatic Cycle Time | S | 72 |
Concrete Batching Plant HZS35-1Q750.pdf
